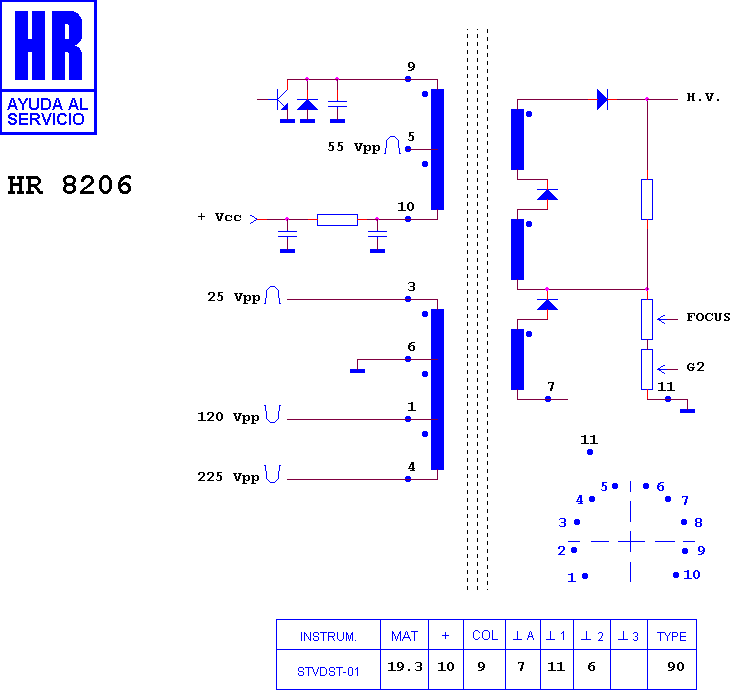

HR 8206

type ST · family 1AP2 · 19.3 kV maximum anode voltage · 90° deflection · 3 windings · 320 g

Manufacturer equivalents (5)

DNF-FK2449 · FCV 21 A 006 · FCV 21 A 006 R · FCX21A006 · FK2449

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8057 · HR 7442 · HR 7489 · HR 7741 · HR 7386 · HR 8026 · HR 7290 · HR 7445 · HR 8688 · HR 8381 · HR 7599 · HR 7286

Fitted to (1)

SUPRA STV 2012

Search this part in the full database
