HR 8345

type ST · family 1XP1 · 20.3 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

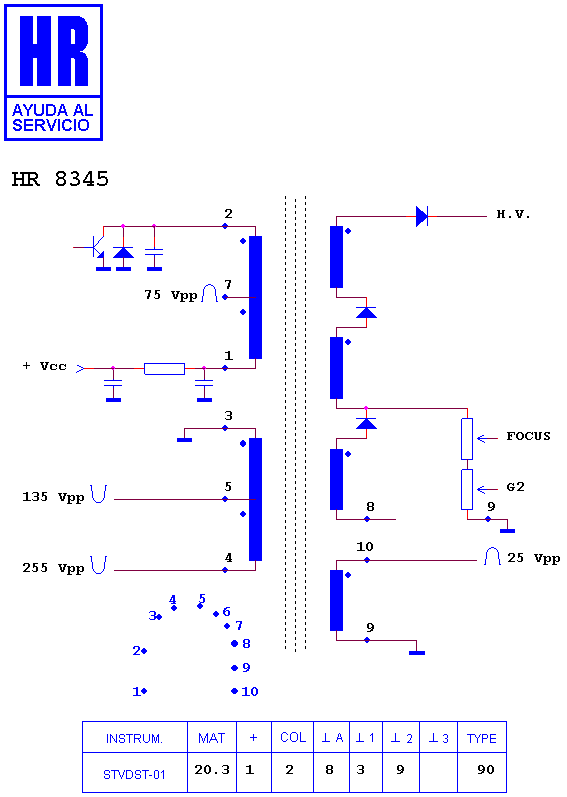

Schematic diagram for HR 8345
schematic

Manufacturer equivalents (4)

105677.40 · 40337-28 · FAT30732 · HR 8345

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7442 · HR 7489 · HR 7741 · HR 8026 · HR 8321 · HR 8667 · HR 7290 · HR 7435 · HR 7031 · HR 7479 · HR 7779 · HR 7600

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
