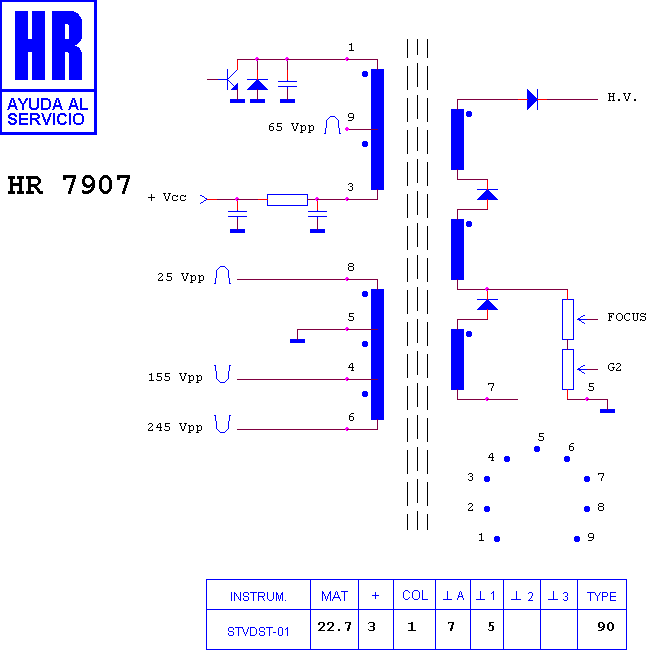

HR 7907

type ST · family 1YP · 22.7 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

Manufacturer equivalents (3)

CE 41294 A · CE 41294-00 A · CE 41294-00 A KD

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7976 · HR 8381 · HR 7025 · HR 7120 · HR 6521 · HR 7435 · HR 7442 · HR 7489 · HR 7741 · HR 8026 · HR 7171 · HR 7967

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (15)

JVC C 202 HM · JVC C 210 EKX · JVC C 210 EKY · JVC C 210 EY · JVC C 210 HM · JVC C 210 PFY · JVC C 2190 EK · JVC C-S 2190 EK · JVC CHASIS BX II · JVC CS 2180 · JVC CS 2180 E · JVC CS 2180 S · JVC CS 2181 · JVC CS 2191 ET · JVC S 2190 EK

Search this part in the full database
