HR 7120

type ST · family 1NP1 · 20.4 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

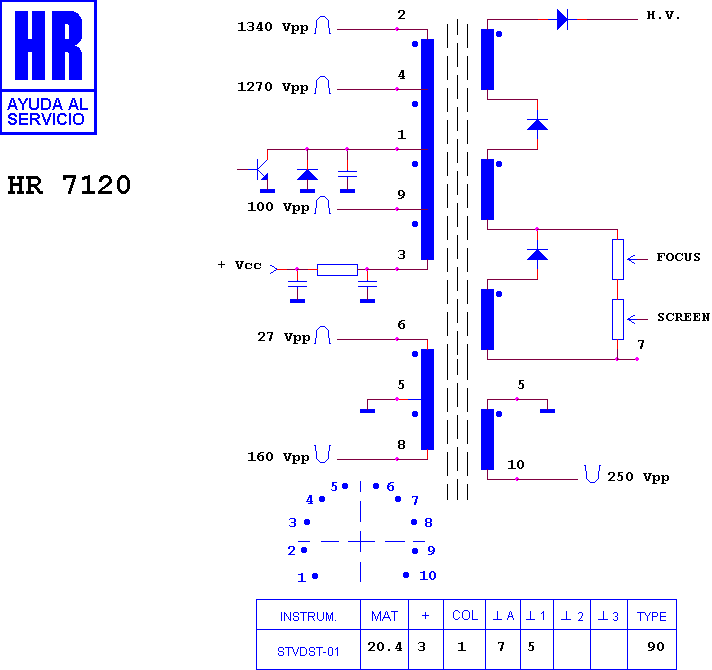

Schematic diagram for HR 7120
schematic

Manufacturer equivalents (1)

HR 7120

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7025 · HR 7976 · HR 8170 · HR 7907 · HR 7652 · HR 7601 · HR 8048 · HR 7407 · HR 7777 · HR 8057 · HR 8289 · HR 7131

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
