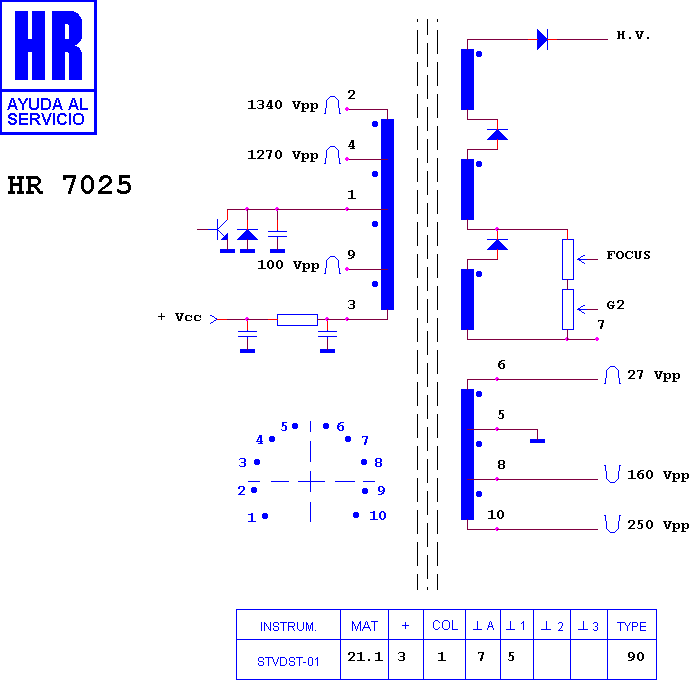

HR 7025

type ST · family 1NP1 · 21.1 kV maximum anode voltage · 90° deflection · 3 windings · 280 g

Manufacturer equivalents (12)

1105.0628 · 1105.0628T · 28021200 · 28040601 · 28046001 · 51033422 · FAT3842 · HR 7025 · KN3842 · MAT33422 · ME/6277-00 · TR1104

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7976 · HR 7907 · HR 7652 · HR 7120 · HR 8170 · HR 7601 · HR 8048 · HR 7777 · HR 8057 · HR 8289 · HR 7131 · HR 6406

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (14)

CABEL 14-28 S. HC · CABEL MONITOR · CABEL VIDEO GAME · CABEL VIDEO GAME 14" · CABEL VIDEO GAME 16" · CABEL VIDEO GAME 20" · CABEL VIDEO GAME 21" · CABEL VIDEO GAME 25" · CABEL VIDEO GAME 28" · HANTAREX CHASIS MTC 9000 · HANTAREX MONITOR · HANTAREX MTC 9000 · HANTAREX MTC 9000 20" · HANTAREX VIDEO GAME
