HR 7976

type ST · family 1VP · 22.7 kV maximum anode voltage · 90° deflection · 3 windings · 408 g

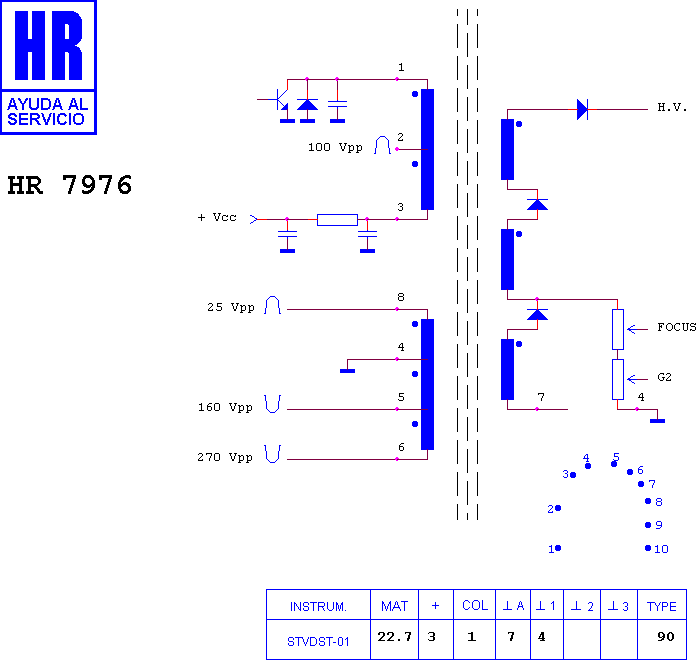

Schematic diagram for HR 7976
schematic

Manufacturer equivalents (3)

BSC 0421 · BSC 0432 · BSC 25-0541

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7907 · HR 7025 · HR 7120 · HR 7652 · HR 6406 · HR 8819 · HR 8109 · HR 7779 · HR 7435 · HR 7777 · HR 6122 · HR 8289

Fitted to (3)

HITACHI HFC 2125 · HITACHI HFC 2173 · HITACHI-FUJIAN HFS 2125
