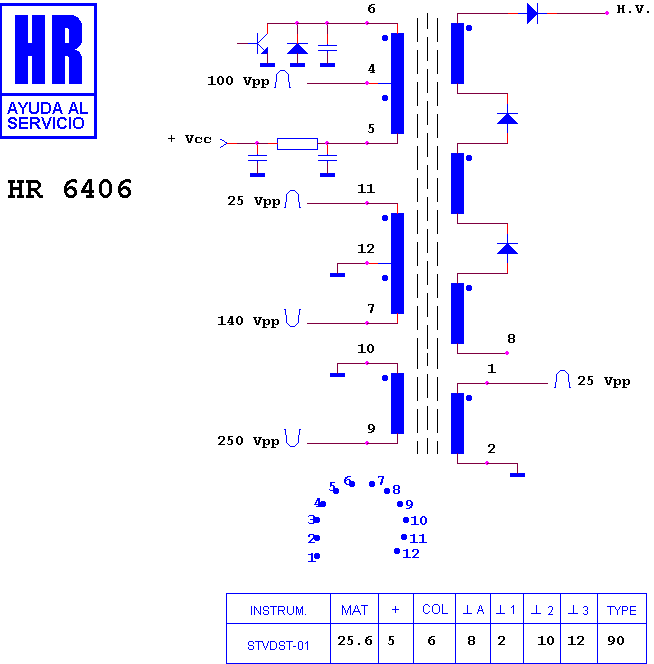

HR 6406

type ST · family 1TS · 25.6 kV maximum anode voltage · 90° deflection · 3 windings · 369 g

Manufacturer equivalents (8)

1-439-235-00 · 1-439-235-11 · 1-439-235-12 · 1-439-235-21 · 1-439-235-22 · 1-439-235-31 · 1-439-237-00 · CP 63

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8466 · HR 7729 · HR 7704 · HR 7777 · HR 8479 · HR 7435 · HR 7067 · HR 8289 · HR 7736 · HR 7025 · HR 7120 · HR 8057

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16529 — Focus control

Fitted to (11)

SONY KV 1714 · SONY KV 1715 R · SONY KV 1743 R · SONY KV 1901 · SONY KV 1912 · SONY KV 1923 · SONY KV 1943 R · SONY KV 1944 R · SONY KX 1901 · SONY ME D 1900 · SONY PVC 2080 WP
