HR 7489

type ST · family 1XP1 · 27.7 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

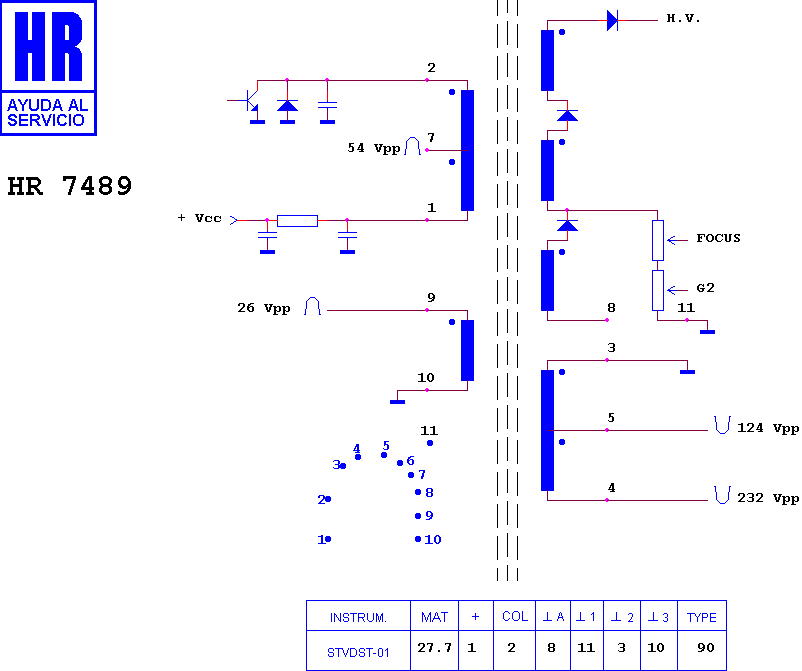

Schematic diagram for HR 7489
schematic

Manufacturer equivalents (3)

3130 108 30450 · 3130 108 30451 · 3130 108 30452

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7442 · HR 7741 · HR 8026 · HR 8345 · HR 7353 · HR 8321 · HR 8667 · HR 7386 · HR 8448 · HR 6556 · HR 8206 · HR 8381

Fitted to (1)

SINUDYNE TVC 90§ CCT
