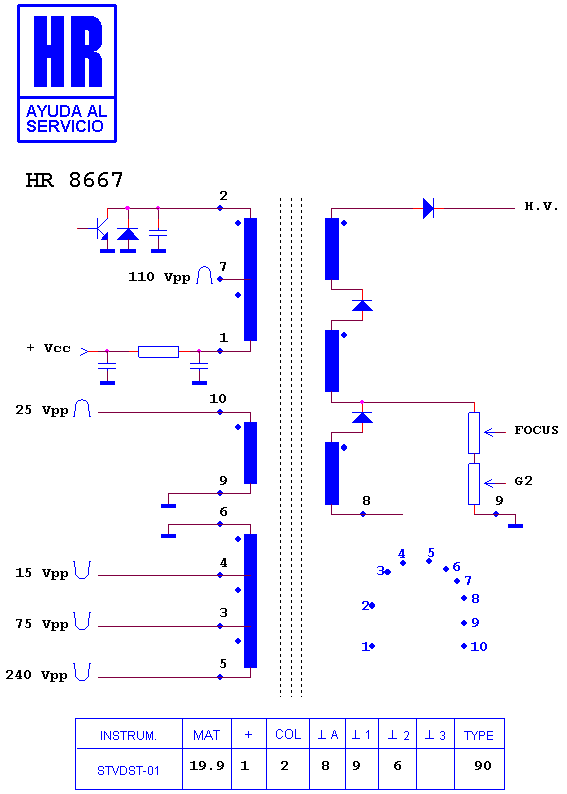

HR 8667

19.9 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

Manufacturer equivalents (10)

11030238382000 · 1142.5102 · 1142.5102 A · 1142.5102 B · 1142.51022 · 48632115000 · 63.2115.000 · 700402198 · 88700402198 · HR 8667

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8321 · HR 7442 · HR 7489 · HR 7741 · HR 7652 · HR 7599 · HR 7286 · HR 8330 · HR 7967 · HR 7600 · HR 6556 · HR 7782

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
