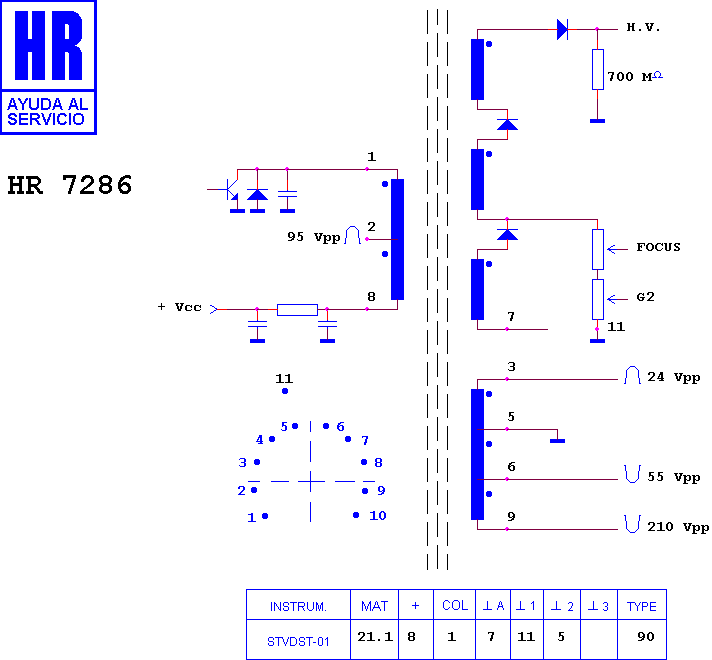

HR 7286

type ST · family 1NP1 · 21.1 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

Manufacturer equivalents (1)

DS 18 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7599 · HR 7442 · HR 7489 · HR 7741 · HR 8359 · HR 8222 · HR 8137 · HR 6122 · HR 8330 · HR 6554 · HR 8381 · HR 7435

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1663 — EHT anode lead

Fitted to (2)

MIVAR 20 M 1 · MIVAR 20 S 2
