HR 8448

type ST · family 1XP1 · 31.5 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

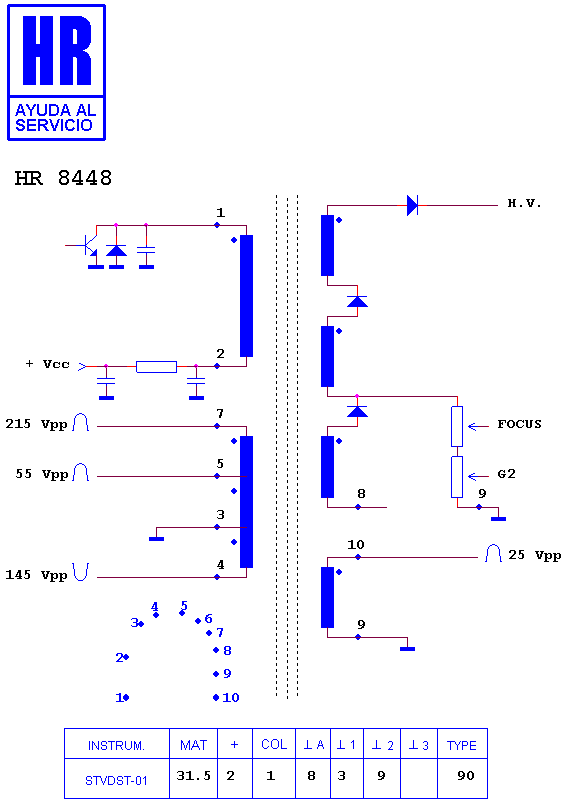

Schematic diagram for HR 8448
schematic

Manufacturer equivalents (10)

140 10655 · 20610 · 20611 · 20612 · 20613 · 20614 · 4822 140 10655 · AT 2078-20611 · AT 2078/98 · AT 2078/98 ST

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8688 · HR 7445 · HR 8468 · HR 80131 · HR 7601 · HR 7729 · HR 7967 · HR 8272 · HR 7386 · HR 7185 · HR 8481 · HR 6596

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (11)

PHILIPS 20 PV 688 · PHILIPS 20 PV 688/05 · PHILIPS 21 PV 620 · PHILIPS 21 PV 688 · PHILIPS 21 PV 688/00 · PHILIPS 21 PV 688/05 · PHILIPS 21 PV 688/39 · PHILIPS 221 COMBI STEREO 98 · PHILIPS 221/98 · PHILIPS COMBI STEREO · PHILIPS COMBI TV/VCR
