HR 8110

type ST · family 1NP1 · 21 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

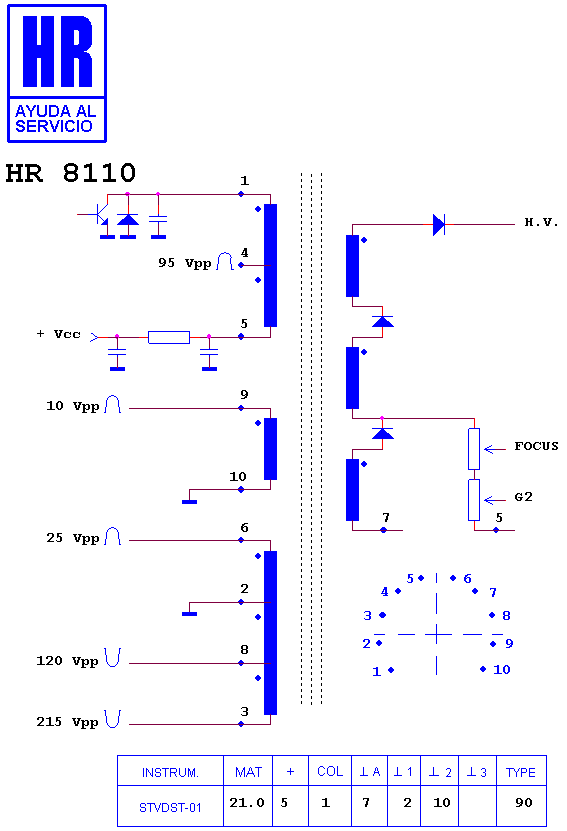

Schematic diagram for HR 8110
schematic

Manufacturer equivalents (11)

3210-61294 · 321061294-004 · 4138 · B 32 3438 · B 32 3438 001 · B 32 3438 002 · B 32 3438 002 000 · B 32 3438 003 · B 32 3438 004 · KT 3005 · TVC/25

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7283 · HR 7782 · HR 8488 · HR 8111 · HR 7066 · HR 7755 · HR 7131 · HR 8442 · HR 7777 · HR 7535 · HR 7188 · HR 8109

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (5)

PHILCO 20 R 36 · PHILCO CPH 03 · PHILCO PC 2035 · PHILCO PC 2035/6 · PHILCO PC 2036
