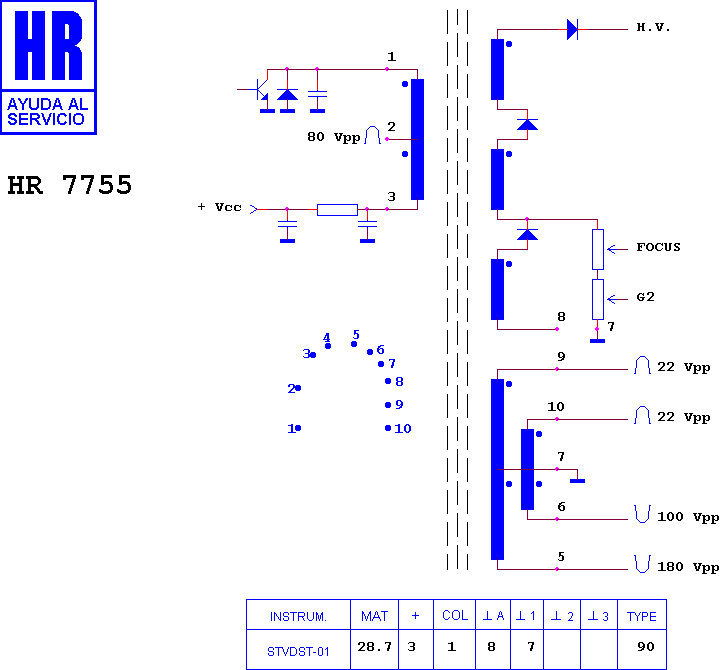

HR 7755

type ST · family 1YP · 28.7 kV maximum anode voltage · 90° deflection · 4 windings · 374 g

Manufacturer equivalents (2)

154 168 D · 154A50B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8170 · HR 7932 · HR 8774 · HR 8110 · HR 8111 · HR 7535 · HR 7131 · HR 7736 · HR 7188 · HR 7437 · HR 7438 · HR 7196

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
