HR 7421

28.1 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

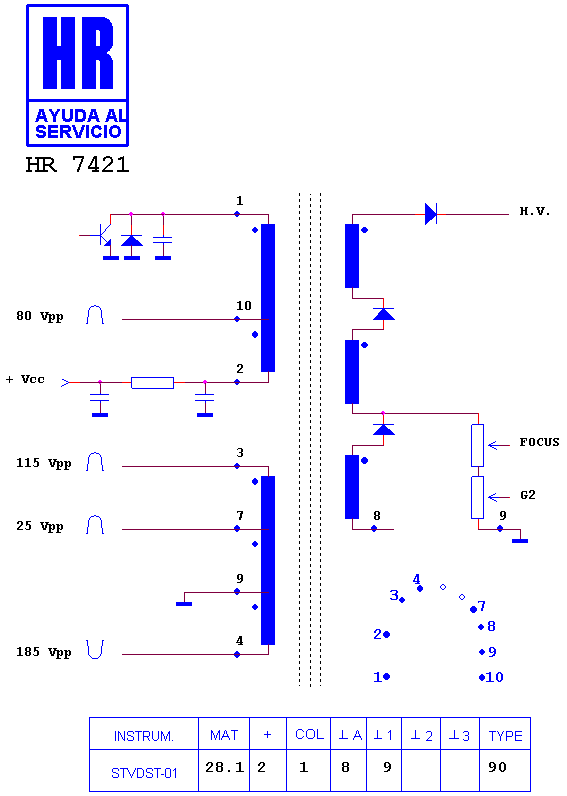

Schematic diagram for HR 7421
schematic (archived)

Manufacturer equivalents (9)

2001091001 · 37-JF0101-000 · 37-JF0101-002 · 37-JF0101-0020X · 37-JF0101-072 · 37-SC2901-163 · BSC29-0116 · HR 7421 · JF0101-0722

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8774 · HR 7437 · HR 7806 · HR 7729 · HR 7438 · HR 8466 · HR 80131 · HR 8564 · HR 7989 · HR 7755 · HR 8109 · HR 7736

Fitted to (6)

TCL 3409 · TCL 3438 · TCL 3438 FPR · TCL 3438 R · TCL EC 3409 · TED EC 3438
