HR 8564

type ST · family 1XP1 · 18.5 kV maximum anode voltage · 90° deflection · 4 windings · 296 g

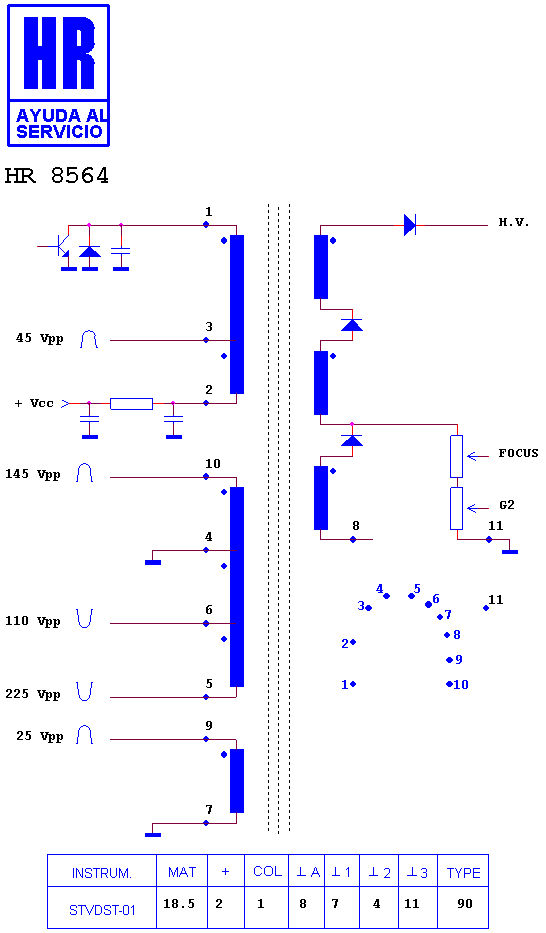

Schematic diagram for HR 8564
schematic

Manufacturer equivalents (1)

FCM 20 B 057

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7633 · HR 8922 · HR 7830 · HR 8263 · HR 7711 · HR 7657 · HR 7822 · HR 7809 · HR 8573 · HR 7461 · HR 8087 · HR 7723

Fitted to (8)

CROWN TC 2184 R · DAEWOO VPH 8420 · DEWO VPH 8420 · SEMIVOX TS 14 CRR · SEMIVOX TS 20 CRR · SEMIVOX TVC 14 · SEMIVOX TVC 20 · TALENT TVP 9420
