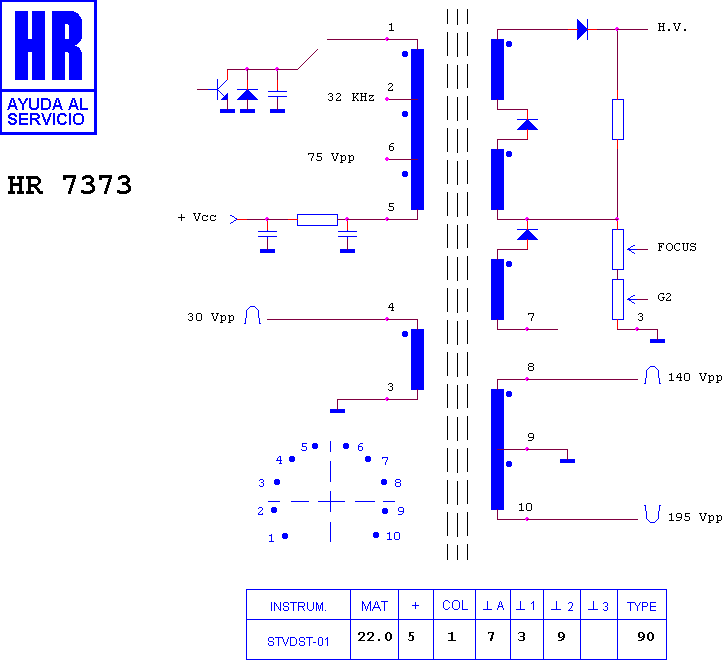

HR 7373

type ST · family 1AP1 · 22 kV maximum anode voltage · 90° deflection · 4 windings · 378 g

Manufacturer equivalents (4)

15146014 · 15146014A · 4-031-001 · FAT 30698

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7421 · HR 7729 · HR 7736 · HR 6512 · HR 8782 · HR 6610 · HR 7243 · HR 7806 · HR 7438 · HR 7415 · HR 7511 · HR 8154

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

FENICE F 334 · FENICE MONITOR

Search this part in the full database
