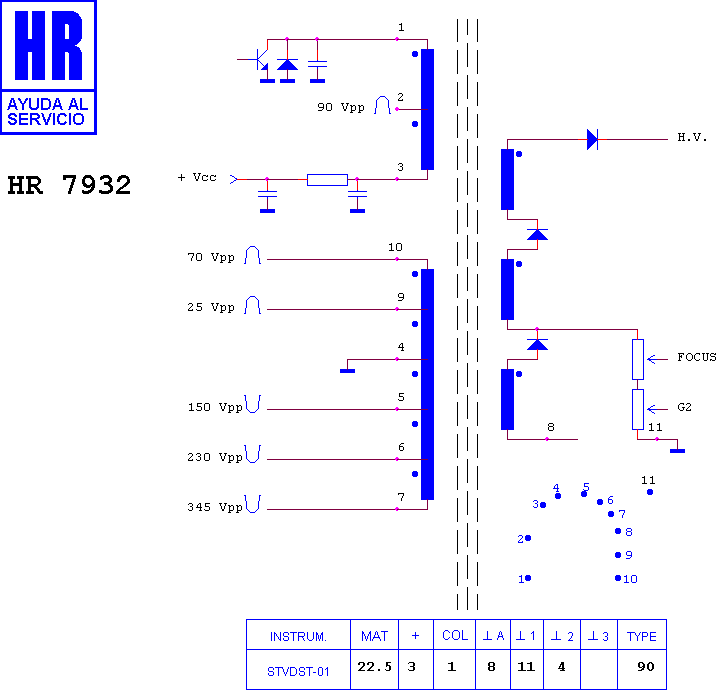

HR 7932

type ST · family 1XP1 · 22.5 kV maximum anode voltage · 90° deflection · 3 windings · 294 g

Manufacturer equivalents (1)

154 309 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7755 · HR 8213 · HR 7421 · HR 7706 · HR 7299 · HR 6490 · HR 6403 · HR 7125 · HR 8295
