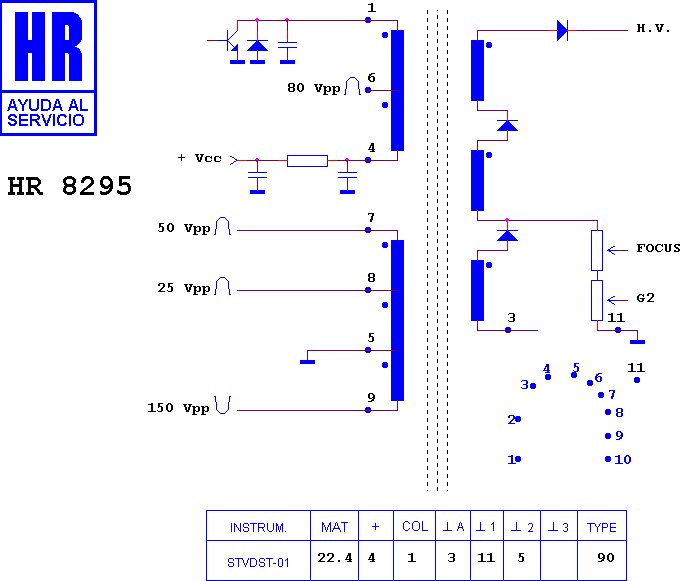

HR 8295

type ST · family 1XP1 · 22.4 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

Manufacturer equivalents (4)

KT 6017 · TAT 1407 · TAT 1407 A · TAT 1407 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7732 · HR 7932 · HR 6490 · HR 7527 · HR 8089 · HR 6403 · HR 8560 · HR 8467 · HR 7869

Notes

COD-025 THE SCREEN CABLE OF HR TRANSFORMER MUST BE SOLDERED DIRECTLY TO THE P.C. BOARD

Fitted to (5)

CCE HPS 1401 · CCE HPS 1401 D · CCE HPS 1492 · CCE HPS 1492 R · CCE HPS 1492 RV

Search this part in the full database
