HR 8560

type ST · family 1XP1 · 21.8 kV maximum anode voltage · 90° deflection · 3 windings · 296 g

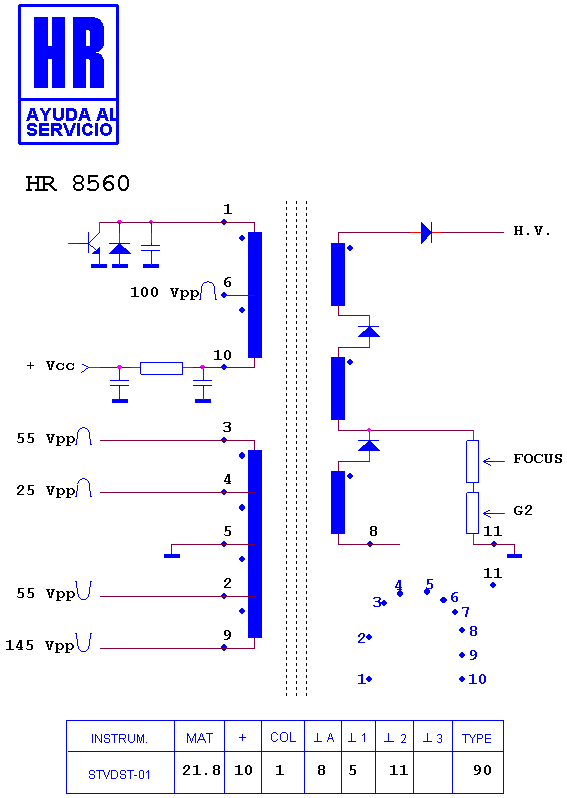

Schematic diagram for HR 8560
schematic

Manufacturer equivalents (11)

108466.90 · 1142.5123 · 1142.51232 · 1142.5123A · 1142.5123B · 1142.5123C · 13822101 · 312813822101 · 40337-77 · DS 20 · HR 8560

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6490 · HR 8295 · HR 8105
