HR 8105

type ST · family 1XP1 · 19.5 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

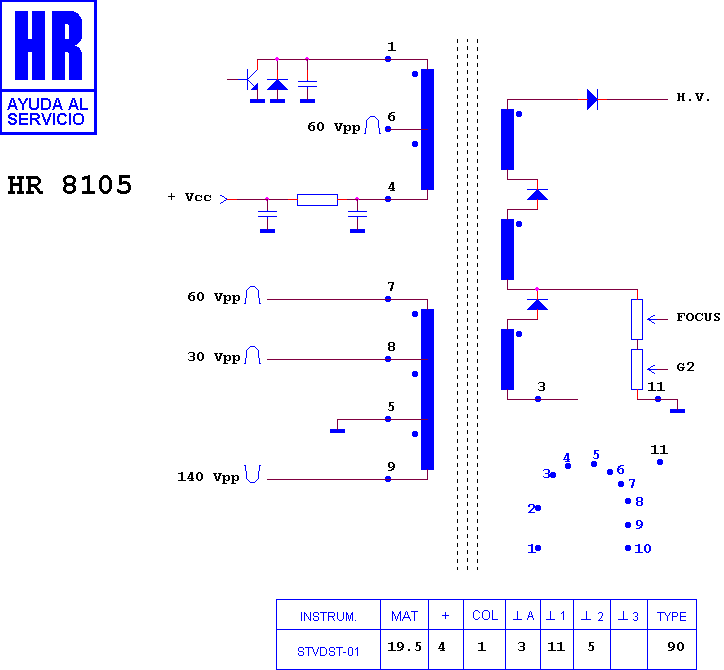

Schematic diagram for HR 8105
schematic

Manufacturer equivalents (4)

KT 6022 · TAT 2008 · TAT 2008 A · TAT 2008 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6490 · HR 7490 · HR 8560

Fitted to (11)

CCE HPS 2001 · CCE HPS 2001 B · CCE HPS 2001 C · CCE HPS 2001 D · CCE HPS 2080 Z · CCE HPS 2085 Z · CCE HPS 2090 Z · CCE HPS 2092 · CCE HPS 2092 B · CCE HPS 2092 C · CCE HPS 2092 D
