HR 8089

type ST · family 1AP1 · 26.4 kV maximum anode voltage · 110° deflection · 3 windings · 390 g

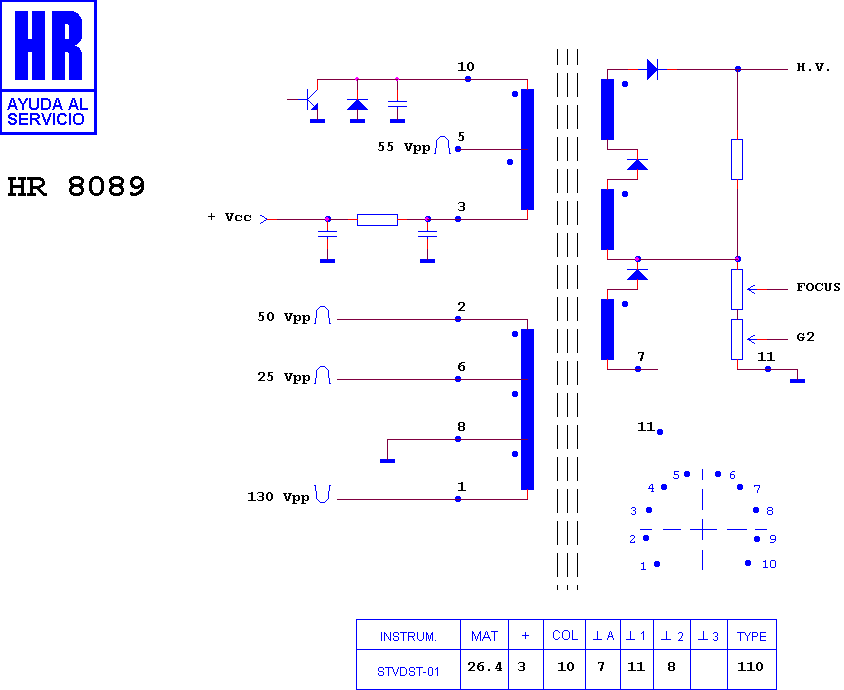

Schematic diagram for HR 8089
schematic

Manufacturer equivalents (18)

003311138 · 0485938 · 103920.20 · 1192.0807 · 1192.0807 B · 1192.1067 · 1362.3048 · 40330-25 · 420388 · 485938 · FAT30435 · FAT30695 · GN420388 · HR 8089 · KN30435 · M 12-109 · PET 32-C3 · TR1201

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8407 · HR 8615 · HR 8370 · HR 8210 · HR 80317 · HR 8116

Fitted to (6)

GORENJE 636 S 02 · QUELLE 173.545 · QUELLE FT 4275 · RADIOTONE TV 8200 MT · UNIVERSUM FT 4261 · UNIVERSUM FT 4275
