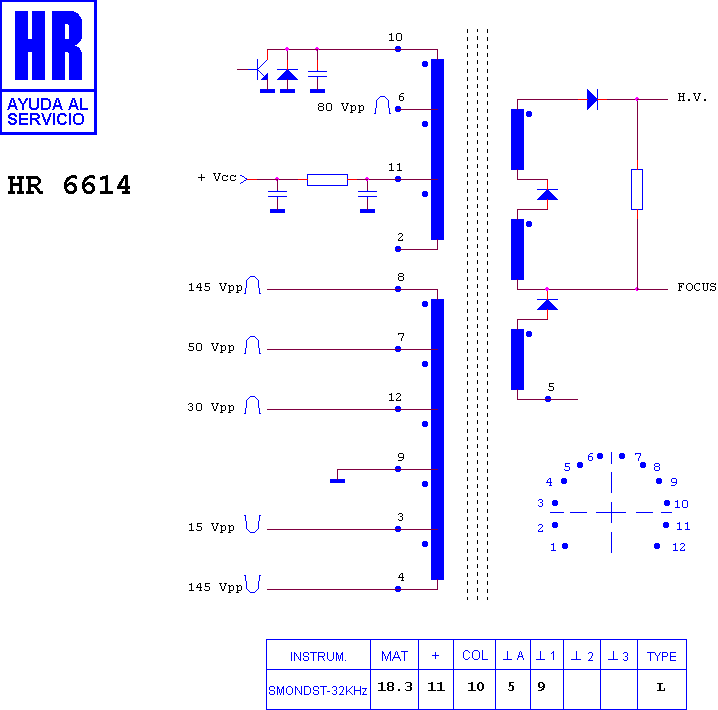

HR 6614

type SM · family 1BS1 · 18.3 kV maximum anode voltage · L° deflection · 3 windings · 360 g

Manufacturer equivalents (6)

106851.00 · 10685100.P1 · 40308-57 · CTRNF2075BMVO · F 2075 BM · RTRNF2075BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6612 · HR 8089 · HR 8557

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Search this part in the full database
