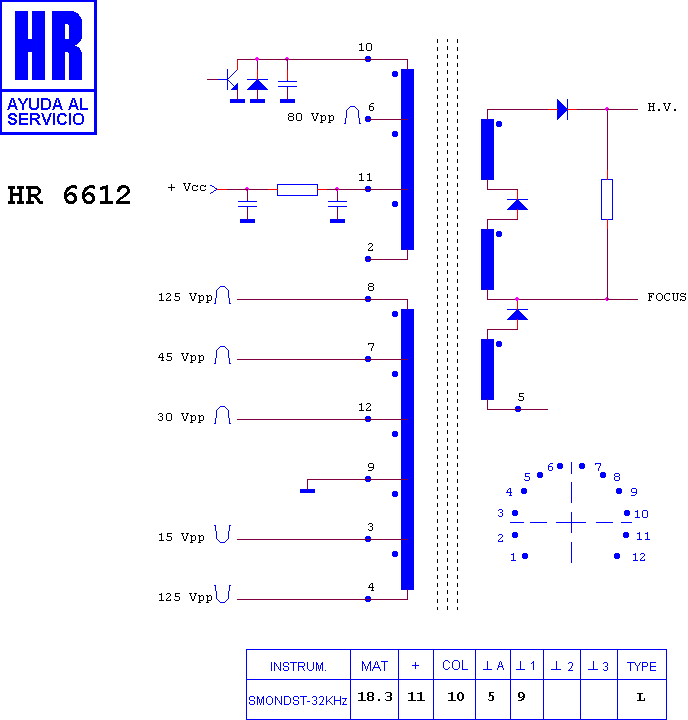

HR 6612

type SM · family 1BS1 · 18.3 kV maximum anode voltage · L° deflection · 3 windings · 358 g

Manufacturer equivalents (5)

106520.50 · 106520.50 P2 · 40308-55 · F 2071 BM · RTRNF2071BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6614

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Fitted to (4)

SHARP 70 GF 66 E · SHARP 81 GF 66 E · SHARP 81 GF 66 F · SHARP CHASIS SF 29" 100 HZ

Search this part in the full database
