HR 8557

type SM · family 1YP · 26.5 kV maximum anode voltage · L° deflection · 4 windings · 410 g

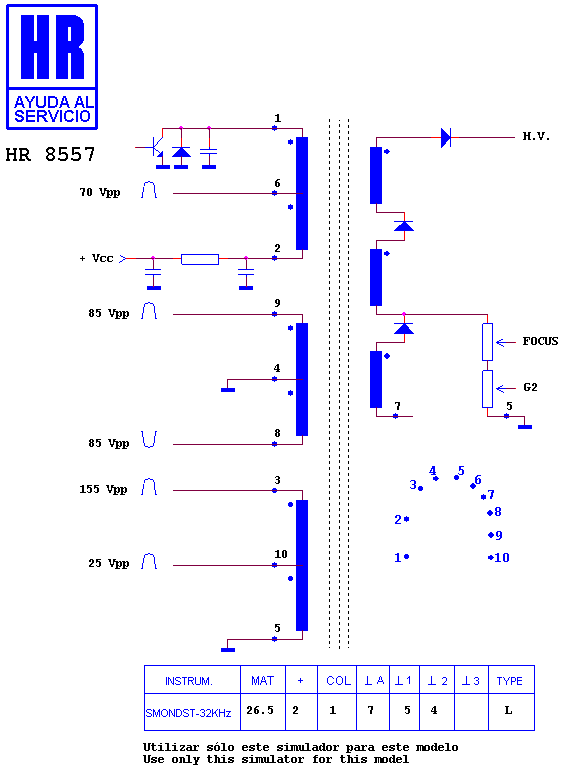

Schematic diagram for HR 8557
schematic

Manufacturer equivalents (3)

0432320012 · 3232001 · 432320012

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8612 · HR 8849 · HR 6614

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

EMERSON TS 3050 D · ORION 8390 · ORION 8390 VT · ORION COLOR 8390
