HR 8849

30.5 kV maximum anode voltage · L° deflection · 4 windings · 400 g

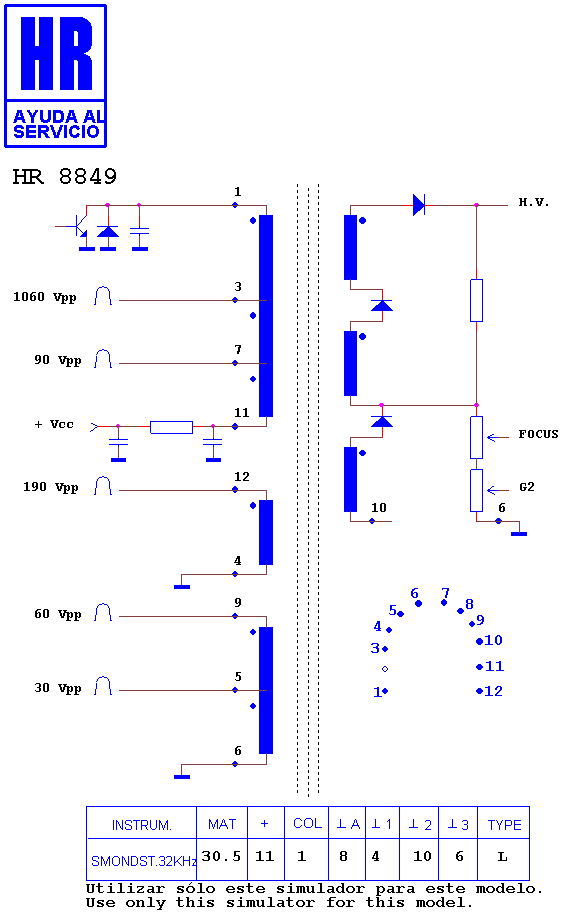

Schematic diagram for HR 8849 — schematic (archived)

Manufacturer equivalents (2)

1372.0082D · DS60

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8704 · HR 8557

Fitted to (1)

MIVAR 29 S 3
