HR 8704

21.8 kV maximum anode voltage · L° deflection · 3 windings · 410 g

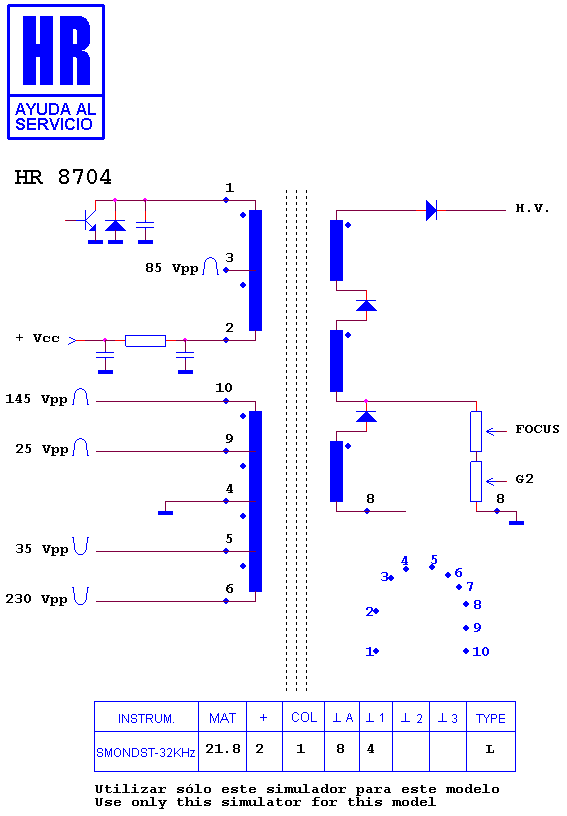

Schematic diagram for HR 8704
schematic (archived)

Manufacturer equivalents (9)

105325.10 · 1302.0035 · 1302.0035A · 23236536 · 23236649 · 40327-26 · FAT30768 · TFB4141AR · TFB4141BE

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80200 · HR 5710 · HR 7089 · HR 8849 · HR 6601 · HR 8525

Fitted to (1)

TOSHIBA 3378 DG
