HR 7089

type SM · family 1AP1 · L° deflection · 5 windings · 335 g

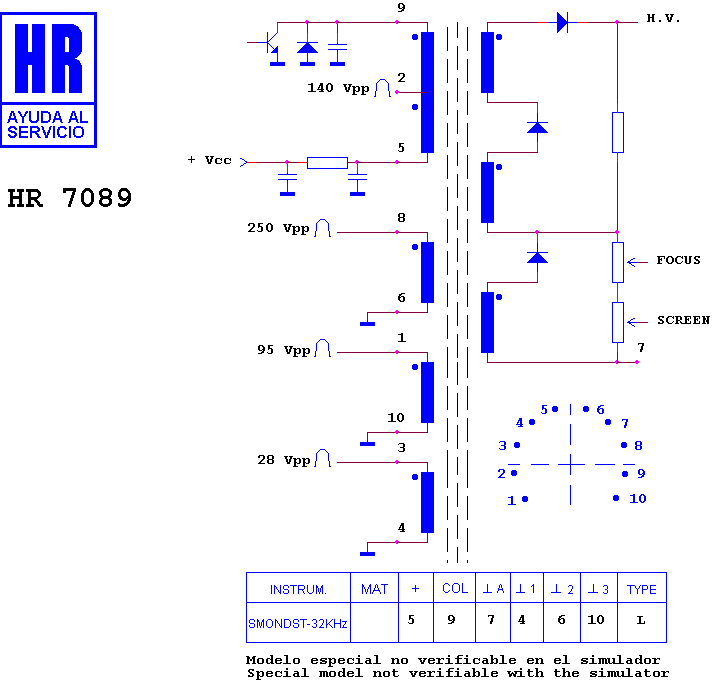

Schematic diagram for HR 7089
schematic

Manufacturer equivalents (2)

1105.0688 · 28024890

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8257 · HR 8704

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

HANTAREX MONITOR · ITALTEL MONITOR
