HR 8331

type ST · family 1VP · 32.1 kV maximum anode voltage · 110° deflection · 4 windings · 374 g

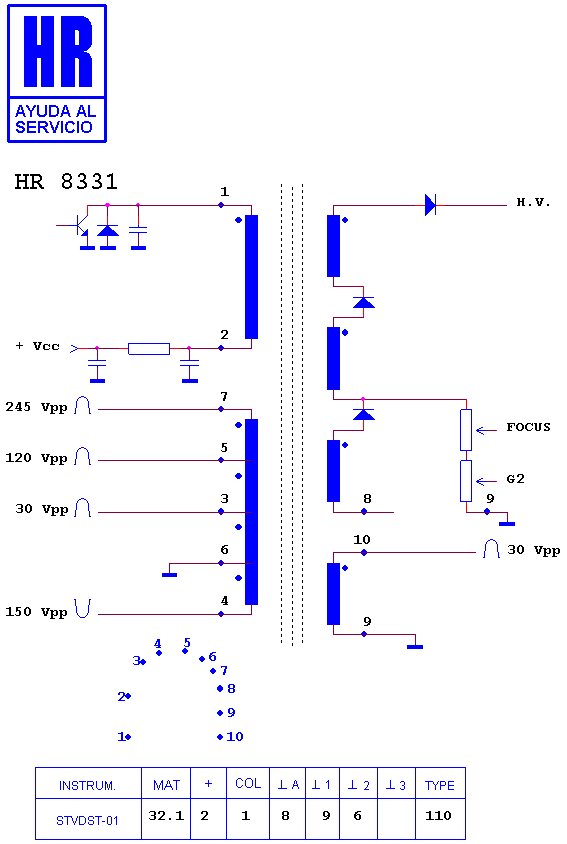

Schematic diagram for HR 8331
schematic

Manufacturer equivalents (11)

3128 138 21041 · 480614017039 · OV 2076-21041 · OV2076/B3 · OV2076/B3B · OV2076/B3D · OV2076/B3H · OV2076/B3I · OV2076/B3M · OV2076/B3N · OV2076/B3O

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8406 · HR 8403 · HR 8346 · HR 8333 · HR 8937 · HR 8973 · HR 8215 · HR 8121 · HR 8952 · HR 8436 · HR 8578 · HR 8723

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (2)

PHILIPS 29 PT 656 A · PHILIPS 29 PT 856 A

Search this part in the full database
