HR 6359

type ST · family 1BP1 · 27.6 kV maximum anode voltage · 110° deflection · 4 windings · 425 g

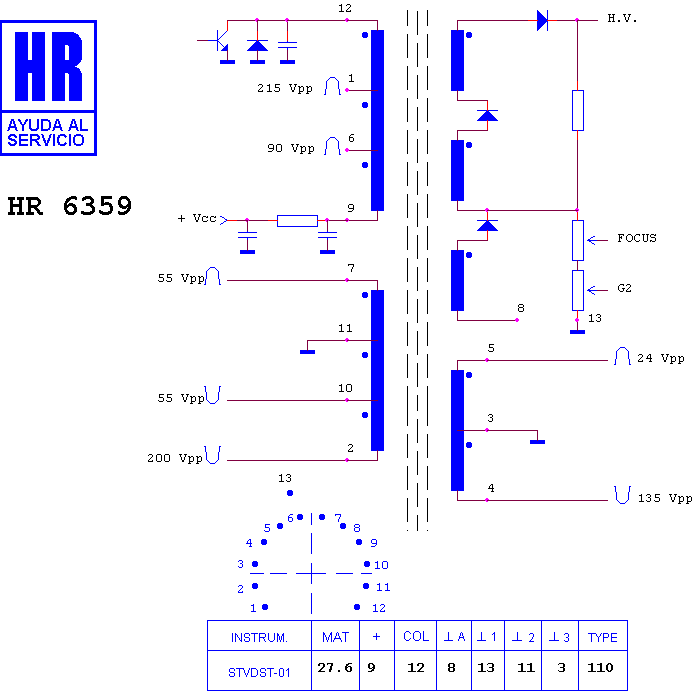

Schematic diagram for HR 6359
schematic

Manufacturer equivalents (2)

1182.0028 · JT 126

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7433 · HR 8436 · HR 8406 · HR 80092 · HR 7368 · HR 8109 · HR 8676 · HR 8937 · HR 8331 · HR 8291 · HR 8763 · HR 8740

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
