HR 8291

type ST · family 1VP2 · 30 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

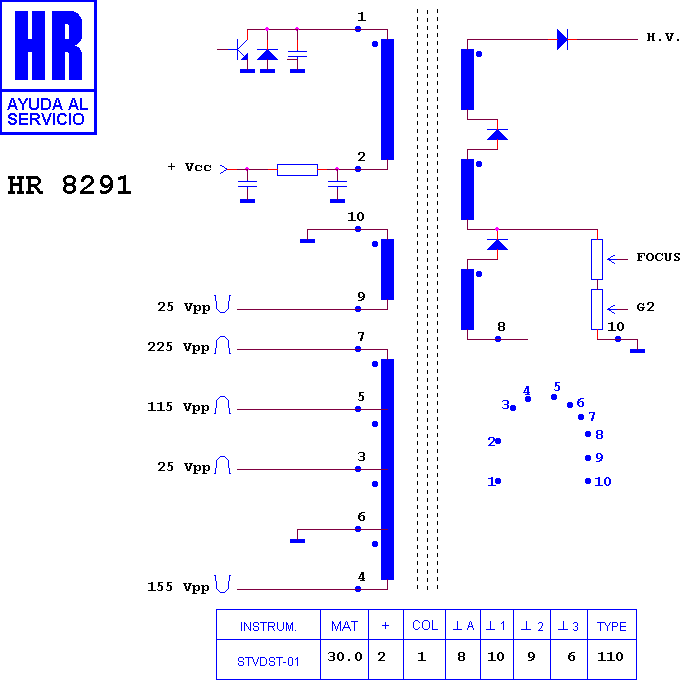

Schematic diagram for HR 8291
schematic

Manufacturer equivalents (6)

140 17085 · 4806 140 17078 · 4806 140 17085 · OV 2076-20591 · OV 2076-20592 · OV 2076-20593

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8723 · HR 8406 · HR 80014 · HR 8403 · HR 7433 · HR 8436 · HR 8333 · HR 8438 · HR 8346 · HR 8902 · HR 8973 · HR 7802

Fitted to (18)

PHILIPS 29 PT 552 · PHILIPS 29 PT 625 A · PHILIPS 29 PT 652 · PHILIPS 29 PT 652 A · PHILIPS 29 PT 654 · PHILIPS 29 PT 654 A · PHILIPS 29 PT 854 · PHILIPS 29 PT 854 A · PHILIPS 33 PT 752 · PHILIPS 33 PT 752 A · PHILIPS 33 PT 772 · PHILIPS 33 PT 772 A · PHILIPS 33 PT 772 A/77B · PHILIPS 33 PT 772 A/78R · PHILIPS 33 PT 854 · PHILIPS 34 PT 5693 · PHILIPS 34 PT 5693/69 R · PHILIPS CHASIS A 8
