HR 80002

40.5 kV maximum anode voltage · 110° deflection · 4 windings · 400 g

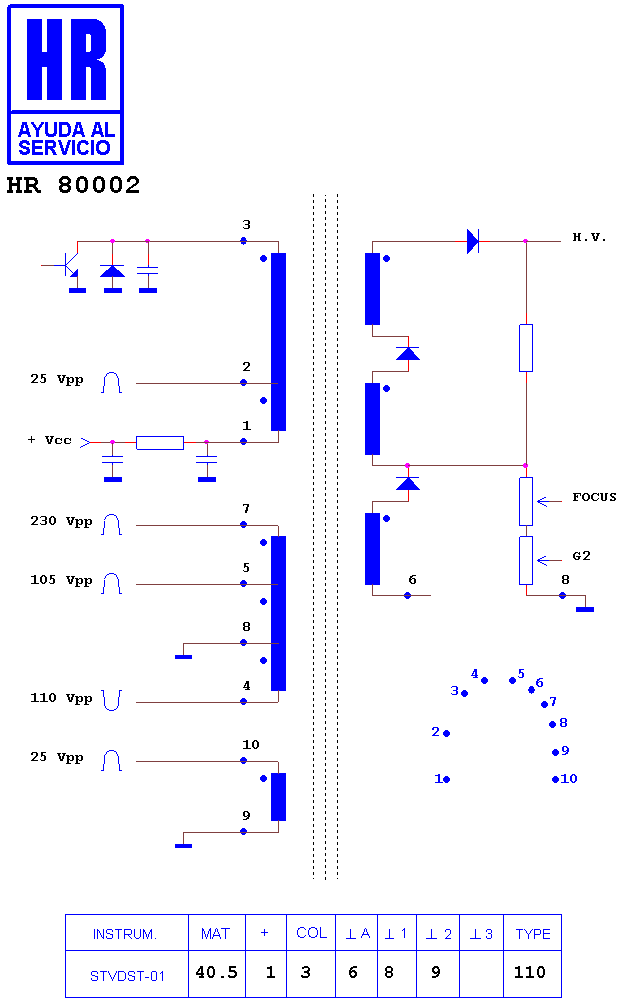

Schematic diagram for HR 80002
schematic (archived)

Manufacturer equivalents (5)

108367.80 · 108384.80 · 1152.7019 · 1372.0109 · 40348A-32

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8952 · HR 8403 · HR 8436 · HR 8406 · HR 8740 · HR 8215 · HR 80036 · HR 8973 · HR 80048 · HR 80014 · HR 8850 · HR 8323

Fitted to (3)

THOMSON 28 KH 412 S · THOMSON CHASIS ETC 210 28 16:9 100 HZ · THOMSON ETV 210 PTV
