HR 80048

41.4 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

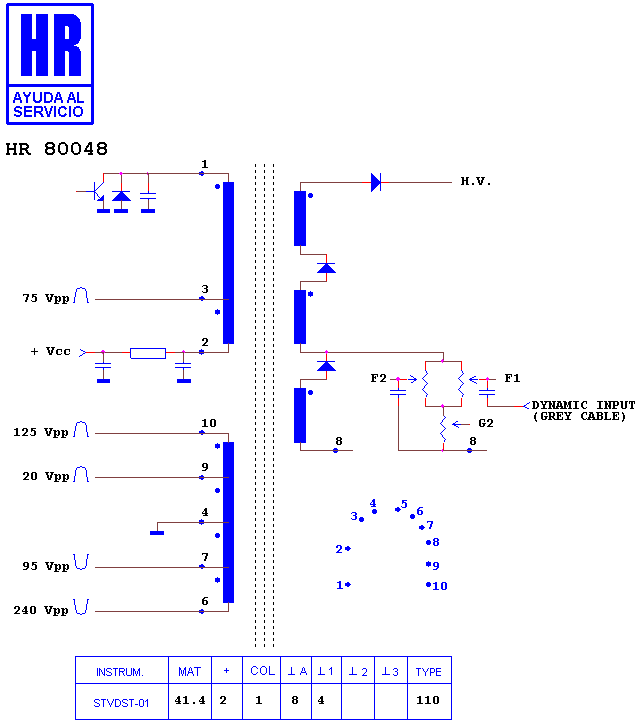

Schematic diagram for HR 80048
schematic (archived)

Manufacturer equivalents (5)

23236645 · 23236718 · BW02707 · TFB4166AD · TFB4166BH

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8853 · HR 8436 · HR 8952 · HR 8901 · HR 8763 · HR 8326 · HR 8256 · HR 7433 · HR 8109 · HR 7548 · HR 6210 · HR 8850

Fitted to (2)

TOSHIBA 27 AF 41 · TOSHIBA CHASIS TAC 0114
