HR 8952

48.3 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

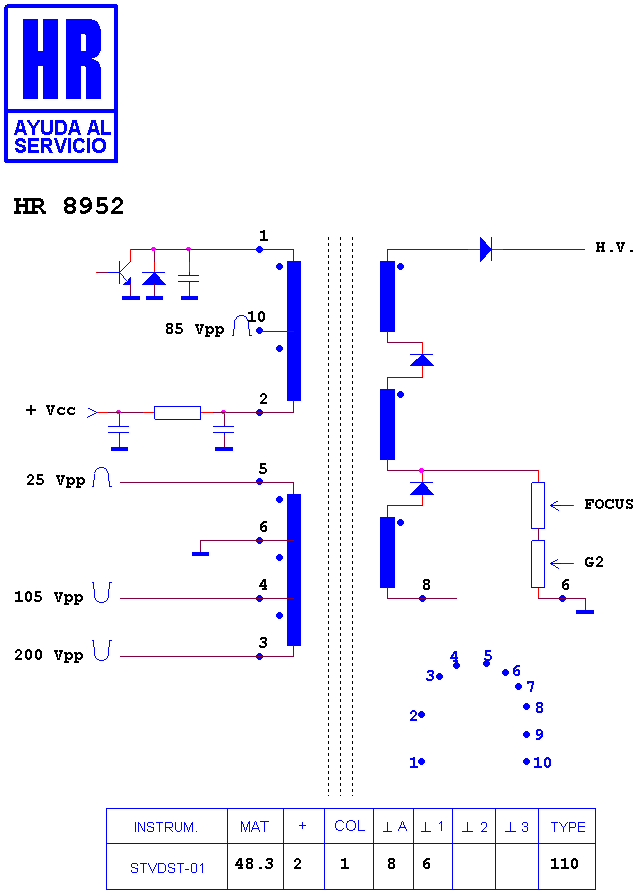

Schematic diagram for HR 8952 — schematic (archived)

Manufacturer equivalents (1)

KFT3AA341F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8853 · HR 8403 · HR 8973 · HR 8578 · HR 8406 · HR 8333 · HR 8937 · HR 8436 · HR 7433 · HR 8323 · HR 8331 · HR 6472
