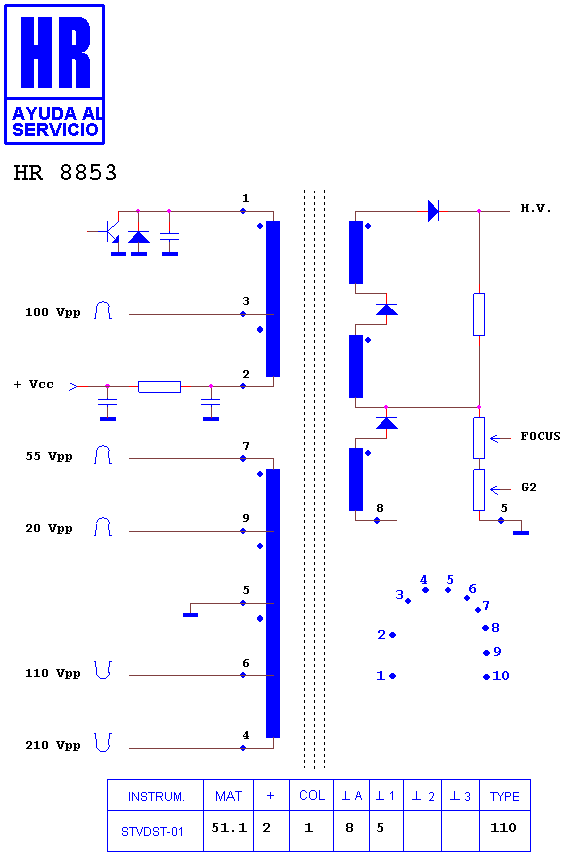

HR 8853

type ST · family 1YP · 51.1 kV maximum anode voltage · 110° deflection · 3 windings · 373 g

Manufacturer equivalents (3)

11226187 A · 6174 Z 6012 C · FTMPN 51 T 6012 C

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8406 · HR 8679 · HR 8952 · HR 8888 · HR 7802 · HR 8763 · HR 8860 · HR 8256 · HR 7433 · HR 8151 · HR 8937 · HR 8326

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

SANSUI SV 29 D
