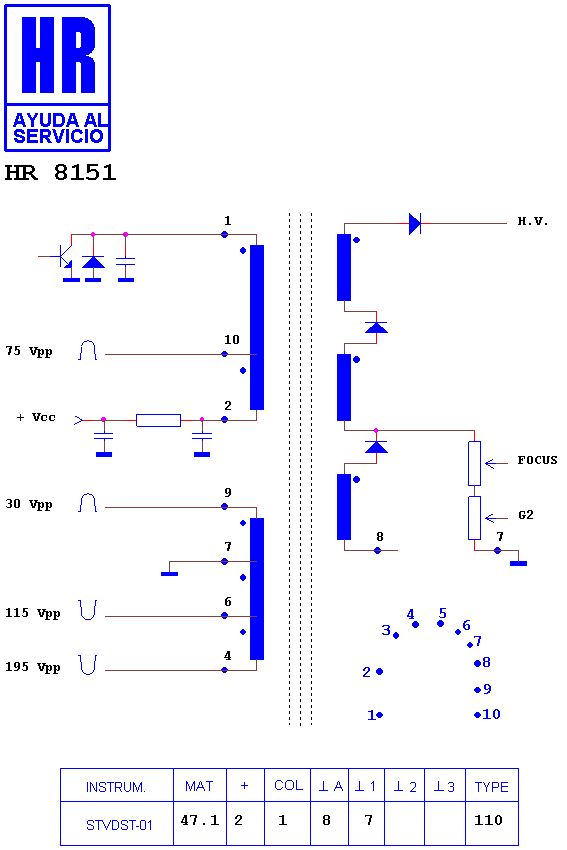

HR 8151

type ST · family 1VP2 · 47.1 kV maximum anode voltage · 110° deflection · 3 windings · 400 g

Manufacturer equivalents (2)

047 105 421 · 47105421

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8578 · HR 8403 · HR 8952 · HR 8853 · HR 8326 · HR 7433 · HR 6472 · HR 8533 · HR 8892 · HR 7729 · HR 8740 · HR 6160

Fitted to (1)

NEC FS 5181
