HR 8256

type ST · family 1XP1 · 30 kV maximum anode voltage · 110° deflection · 4 windings · 290 g

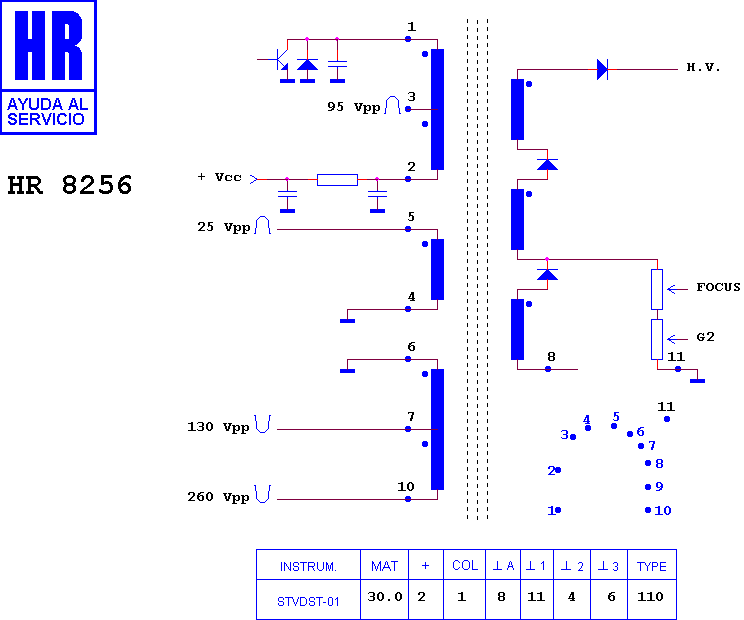

Schematic diagram for HR 8256
schematic

Manufacturer equivalents (9)

08200 · 08201 · 08202 · 08203 · 08204 · 1-453-217-11 · 3306 130 08201 · AT 2079/U2 · KT 13.002

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80048 · HR 8763 · HR 8901 · HR 8436 · HR 8853 · HR 8332 · HR 8837 · HR 7433 · HR 8326 · HR 6472 · HR 8533 · HR 6608

Fitted to (3)

SONY KV 140 MG · SONY KV 200 MG · SONY KV 205 MP
