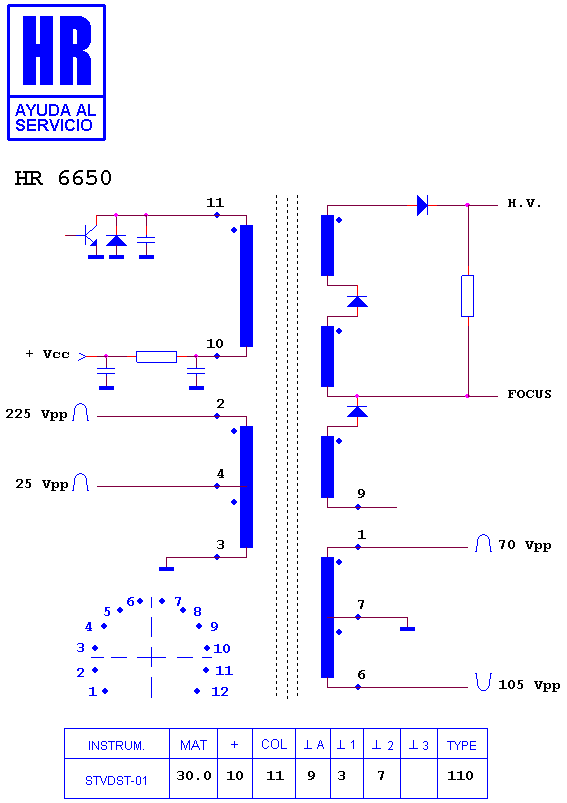

HR 6650

type ST · family 1BS1 · 30 kV maximum anode voltage · 110° deflection · 4 windings · 367 g

Manufacturer equivalents (3)

40308-18 · 404267.60 · 473175.91

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6354 · HR 6273 · HR 6272 · HR 8332 · HR 6720 · HR 7965 · HR 6554 · HR 8851 · HR 8995 · HR 8507 · HR 8850 · HR 6483

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead
• HR 16524 — Focus control

Fitted to (15)

BRANDT CHASIS ICC 7 110§ · BRANDT CHASIS ICC 8 110§ · FERGUSON-THORN-EMI CHASIS ICC 7 110§ · FERGUSON-THORN-EMI CHASIS ICC 8 110§ · NORDMENDE 2.657 · NORDMENDE CHASIS F 20 · NORDMENDE CHASIS ICC 7 110§ · NORDMENDE CHASIS ICC 8 110§ · NORDMENDE SPECTRA SC 63 · SABA CHASIS ICC 7 110§ · SABA CHASIS ICC 8 110§ · TELEFUNKEN CHASIS ICC 7 110§ · TELEFUNKEN CHASIS ICC 8 110§ · THOMSON CHASIS ICC 7 110§ · THOMSON CHASIS ICC 8 110§

Search this part in the full database
