HR 8850

type ST · family 1AP1 · 30.3 kV maximum anode voltage · 110° deflection · 5 windings · 390 g

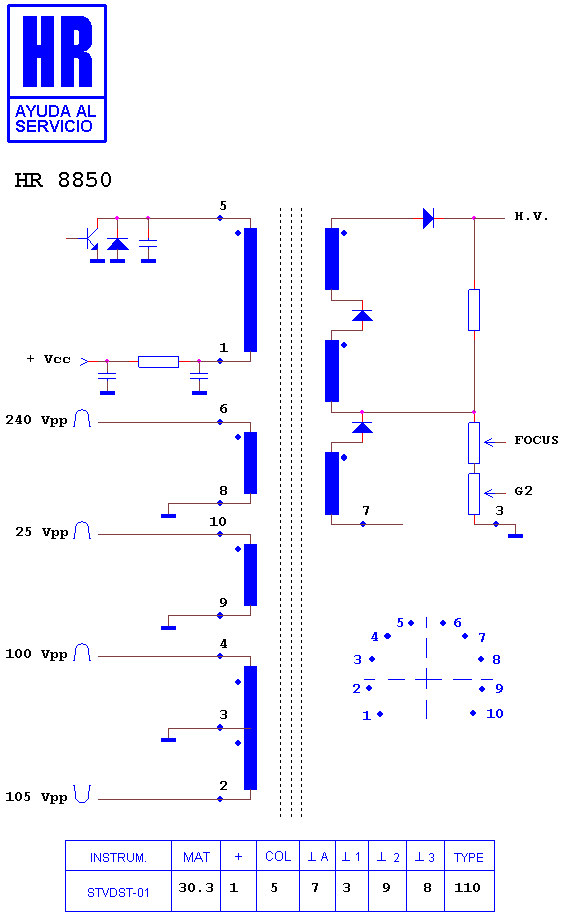

Schematic diagram for HR 8850
schematic (archived)

Manufacturer equivalents (10)

1192.1337 · 1192.1337 A · 1192.13370 · 1352.3020 · 1352.3020 A · 1362.3033 · 4536 00 40 · 4536 00 62 · FAT30793 · HR 8850

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8694 · HR 8674 · HR 8705 · HR 6273 · HR 6354 · HR 8323 · HR 6608 · HR 6483 · HR 6720 · HR 8763 · HR 8456 · HR 8916
