HR 8674

27.6 kV maximum anode voltage · 110° deflection · 5 windings · 390 g

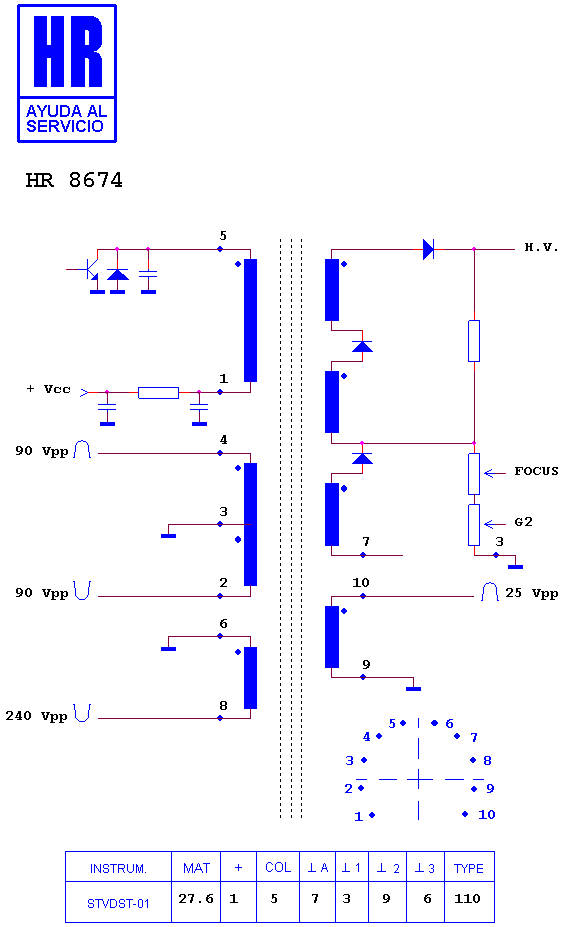

Schematic diagram for HR 8674 — schematic (archived)

Manufacturer equivalents (3)

1352.3037 · 45360064 · HR 8674

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8850 · HR 8694 · HR 7090 · HR 8705 · HR 8916 · HR 7187 · HR 8256 · HR 6273 · HR 6354 · HR 6554 · HR 7296 · HR 6556
