HR 8694

28.2 kV maximum anode voltage · 110° deflection · 5 windings · 390 g

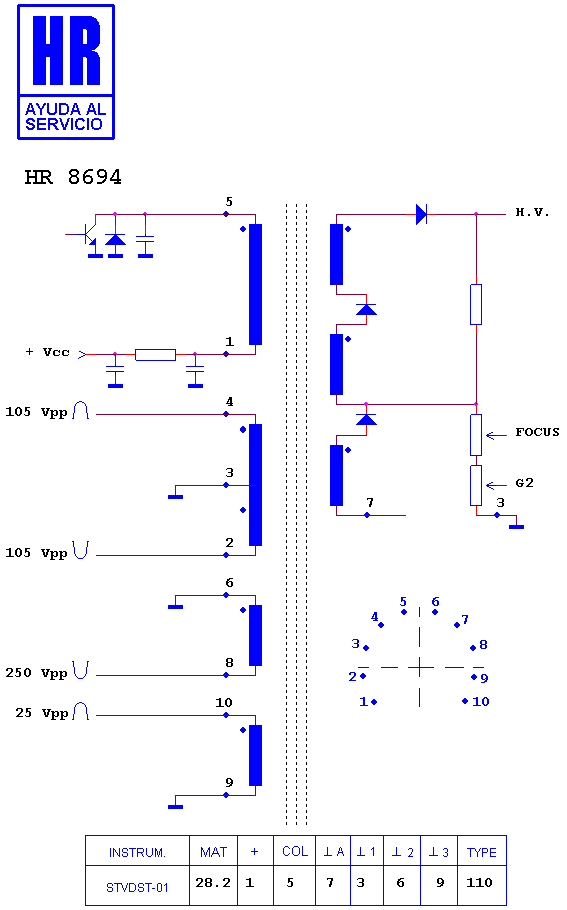

Schematic diagram for HR 8694
schematic (archived)

Manufacturer equivalents (7)

1192.1377 · 1192.13770 · 1352.3003 · 1352.3003A · 45360039 · 45360061 · HR 8694

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8850 · HR 8674 · HR 8705 · HR 80002 · HR 8763 · HR 8256 · HR 6273 · HR 8109 · HR 8952 · HR 6354 · HR 80048 · HR 8323
