HR 8705

30.3 kV maximum anode voltage · 110° deflection · 5 windings · 310 g

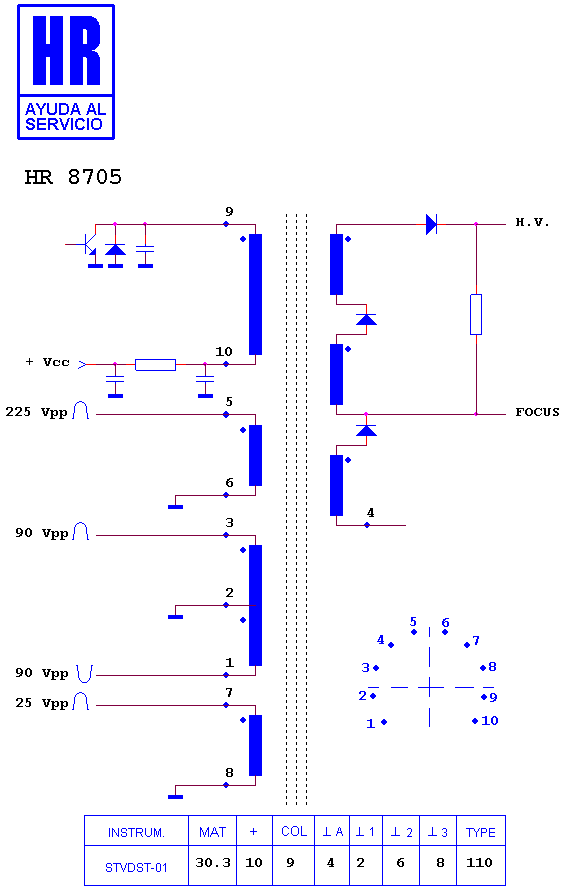

Schematic diagram for HR 8705
schematic (archived)

Manufacturer equivalents (6)

1192.6016 · 1192.6016A · 1362.3609 · 45360048 · FMA0012 · HR 8705

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8850 · HR 8916 · HR 8436 · HR 80002 · HR 6681 · HR 7180 · HR 7297 · HR 6354 · HR 7433 · HR 8952 · HR 6273 · HR 6556

Fitted to (3)

NOKIA - ITT 2 · NOKIA - ITT CHASIS SP 2 · NOKIA - ITT SP
