HR 8852

41.1 kV maximum anode voltage · 110° deflection · 3 windings · 373 g

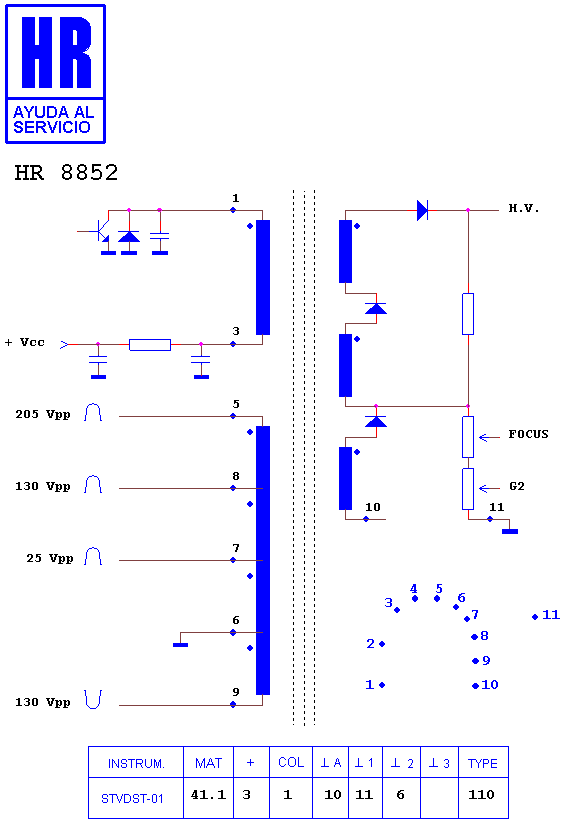

Schematic diagram for HR 8852
schematic (archived)

Manufacturer equivalents (7)

AA26-00105A · AA26-00105S · FUH29C001 · FUH29C001C · FUH29C001S · FUJ29C001 · FUJ29C001(S)

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80036 · HR 8382 · HR 80092 · HR 8779 · HR 8810 · HR 8215 · HR 8973 · HR 8406 · HR 7706 · HR 8403 · HR 7374 · HR 8121

Fitted to (2)

SAMSUNG CS 29 A 5 MTQ · SAMSUNG CS 29 K 3 NT
