HR 8178

type ST · family 1VP · 27 kV maximum anode voltage · 110° deflection · 4 windings · 383 g

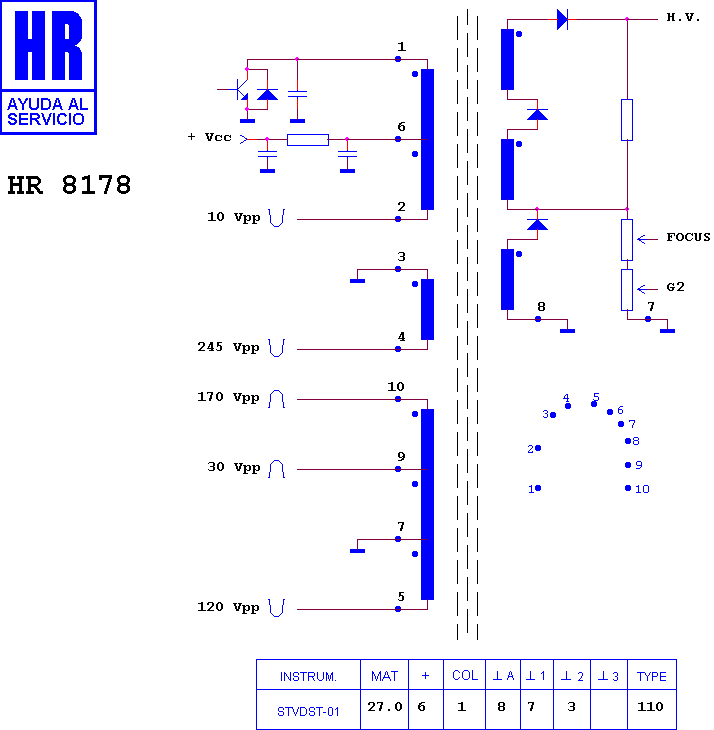

Schematic diagram for HR 8178
schematic

Manufacturer equivalents (1)

KFS 60717

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80092 · HR 8406 · HR 7802 · HR 8723 · HR 8685 · HR 7368 · HR 8852 · HR 6359 · HR 6092 · HR 80014 · HR 8902 · HR 7433

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
