HR 8501

29.4 kV maximum anode voltage · 110° deflection · 3 windings · 296 g

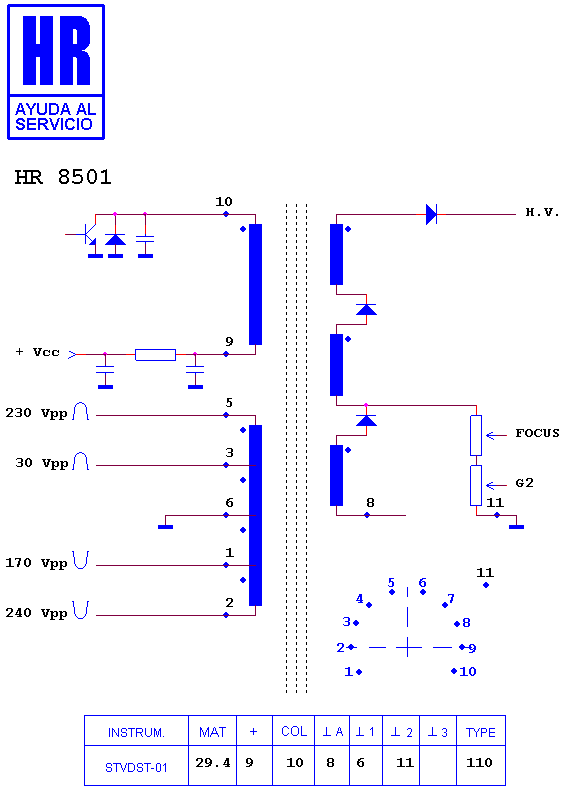

Schematic diagram for HR 8501
schematic (archived)

Manufacturer equivalents (3)

AA26-00018A · FCK09A002 · FCK09A002(S)

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80096 · HR 8398 · HR 6574 · HR 7870 · HR 80030 · HR 7374 · HR 7360 · HR 8902 · HR 8933 · HR 8685 · HR 8723 · HR 8686

Fitted to (3)

RCA CHASIS KCV 13 B · RCA CXF 0932 X · RCA CXF 0933 X

Search this part in the full database
