HR 7107

type ST · family 1AP1 · 35.7 kV maximum anode voltage · 110° deflection · 3 windings · 265 g

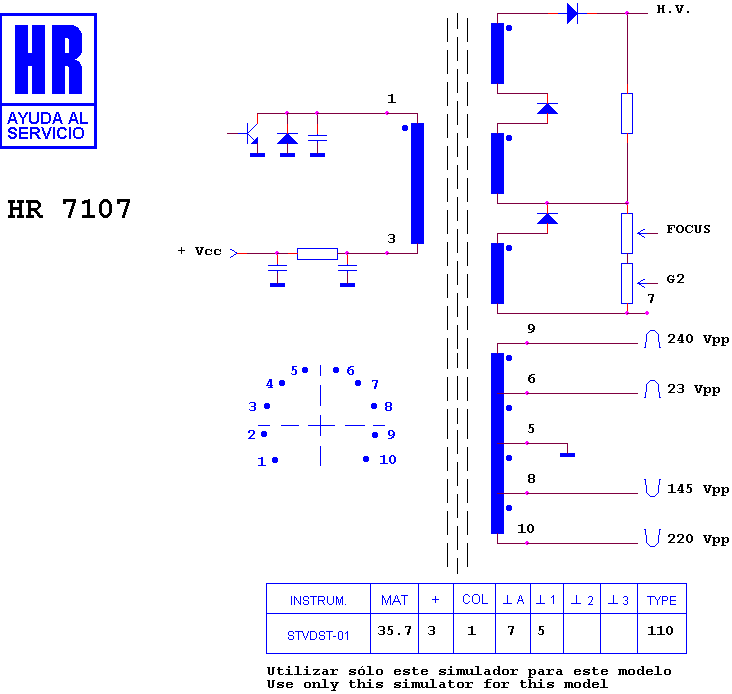

Schematic diagram for HR 7107
schematic

Manufacturer equivalents (14)

039818 · 1105.0728 · 1105.0878 · 1105.0958 · 28026030 · 28026031 · 49-0688-00 · 49-5085-00 · FAT3981 · HR 7107 · KN3981 · KN3981N · MAT33465 · ME/6278-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8382 · HR 7374 · HR 8681 · HR 80032 · HR 8842 · HR 7870 · HR 80030 · HR 8954 · HR 8902 · HR 8810 · HR 6574 · HR 7140

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (17)

CMR CHASIS MTC 9000 · HANTAREX CHASIS MT 9000 · HANTAREX CHASIS MTC 9000 · HANTAREX CHASIS MTC 9000 A · HANTAREX CHASIS MTC 9110 · HANTAREX MONITOR · HANTAREX MT 9000 · HANTAREX MTC 9000 · HANTAREX MTC 9000 A · HANTAREX MTC 9000-3 · HANTAREX MTC 9110 · HANTAREX MTC 9110 2528 · HANTAREX MTC 91100 2528 · HANTAREX VIDEO GAME · VEGAS CHASIS MTC 9000 · VEGAS MTC 9110 2528 · VEGAS VIDEO GAME
