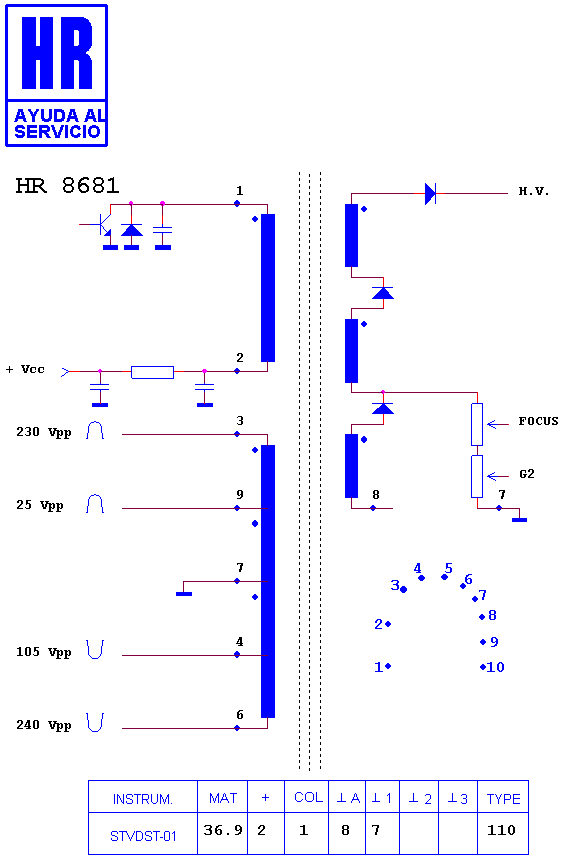

HR 8681

36.9 kV maximum anode voltage · 110° deflection · 3 windings · 410 g

Manufacturer equivalents (4)

50H0000208 · 50H0000224 · FFA64012L · FSA42013L

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8818 · HR 8842 · HR 80032 · HR 80014 · HR 80030 · HR 8406 · HR 7701 · HR 8499 · HR 8991 · HR 8902 · HR 8723 · HR 8954

Fitted to (1)

CURTIS MATHES CM 27101 S
