HR 8991

21.1 kV maximum anode voltage · 110° deflection · 3 windings · 374 g

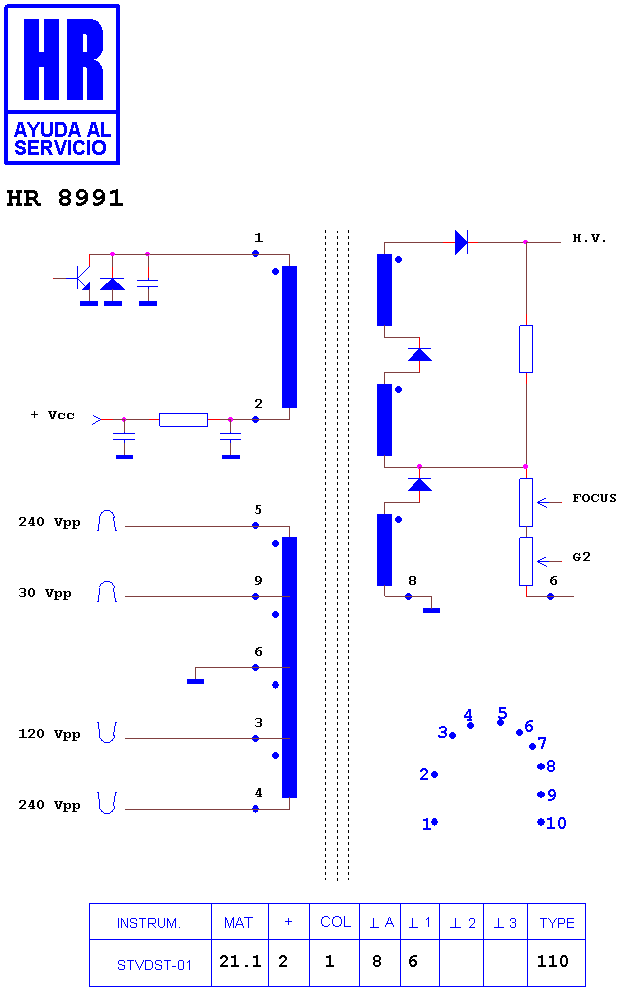

Schematic diagram for HR 8991
schematic (archived)

Manufacturer equivalents (8)

1142.7026 · 1142.70262 · 1142.7026A · 604200000381 · 604200000441 · 604220000381 · FUY20B109 · HR 8991

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8902 · HR 80032 · HR 8723 · HR 80030 · HR 8818 · HR 8681 · HR 7694 · HR 8346 · HR 8842 · HR 7701 · HR 8331 · HR 8291

Fitted to (9)

PHILIPS 14 PT 1501 · PHILIPS 14 PT 1501/12 · PHILIPS 14 PT 1501/62 · PHILIPS 14 PT 6107 · PHILIPS 14 PT 6107/00 · PHILIPS 14 PT 6107/01 B · PHILIPS 14 PT 6107/05 · PHILIPS CHASIS TE 3.2 E CA · PHILIPS PT 6807
