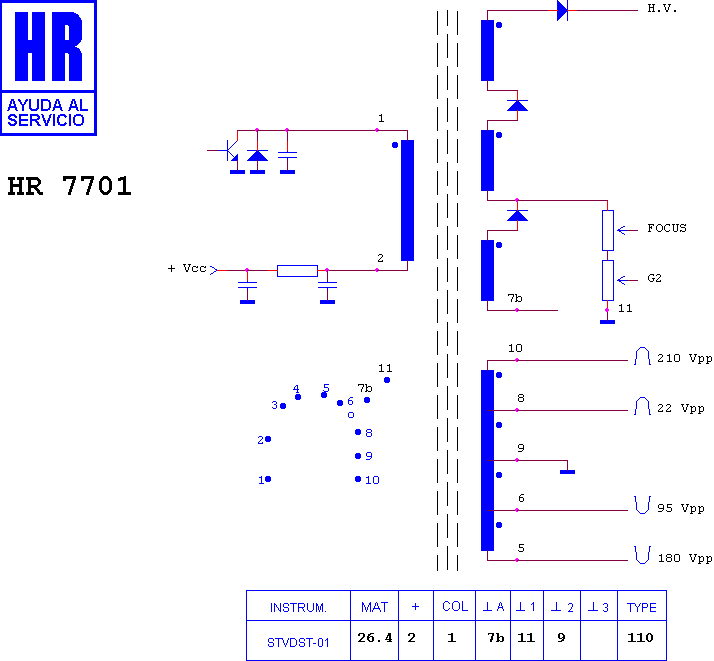

HR 7701

type ST · family 1XP1 · 26.4 kV maximum anode voltage · 110° deflection · 3 windings · 293 g

Manufacturer equivalents (2)

2435001 · 2435001 H

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8681 · HR 8818 · HR 8723 · HR 8406 · HR 80032 · HR 8842 · HR 8291 · HR 8902 · HR 7802 · HR 7433 · HR 80030 · HR 8991
