HR 7870

type ST · family 1YP · 42.6 kV maximum anode voltage · 110° deflection · 3 windings · 402 g

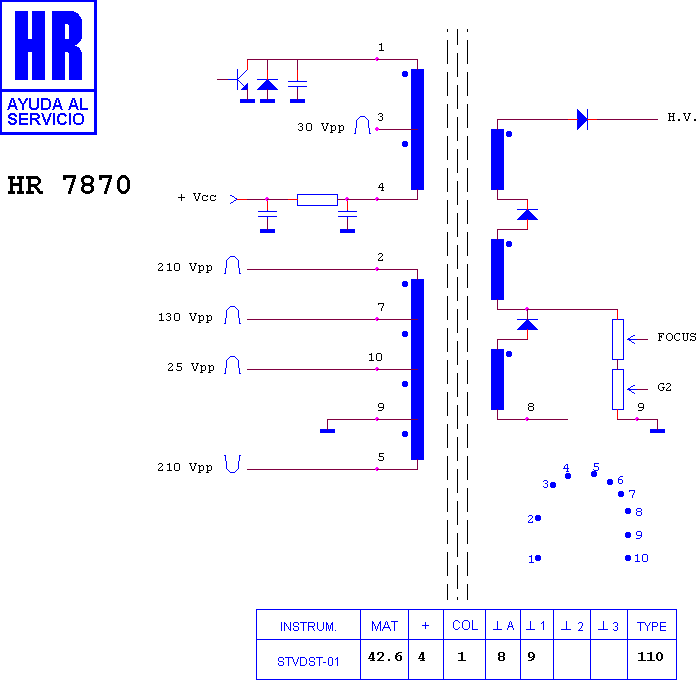

Schematic diagram for HR 7870
schematic

Manufacturer equivalents (3)

BSC 0639 · F 1856 CE · RTRNF1856CEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80030 · HR 46276 · HR 7374 · HR 7050 · HR 7114 · HR 7360 · HR 6382 · HR 8779 · HR 8398 · HR 8501 · HR 8686 · HR 8228

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (4)

SHARP 25 N 42 E 2 · SHARP 25 N 42 E 3 · SHARP 68 C 8 · SHARP SX 68 C 8
