HR 46276

42.9 kV maximum anode voltage · 110° deflection · 4 windings · 474 g

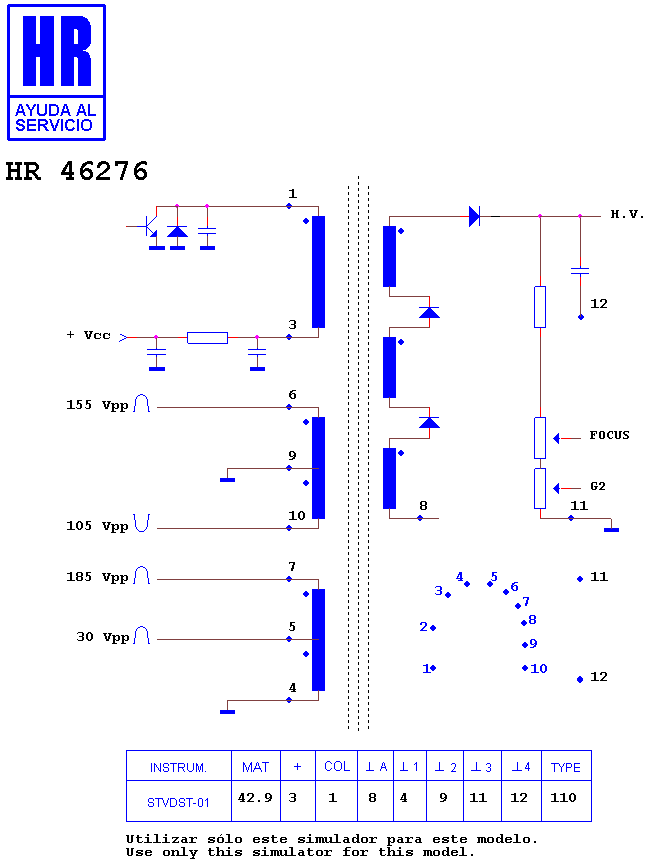

Schematic diagram for HR 46276
schematic (archived)

Manufacturer equivalents (5)

053X065-1001 · 053X0651-002 · 53X0651-001 · CFB1/131 · FCA158

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8779 · HR 8875 · HR 8382 · HR 7706 · HR 7050 · HR 80030 · HR 8810 · HR 6382 · HR 6142 · HR 7831 · HR 7694 · HR 6498

Fitted to (19)

WELLS GARDNER 25 K 7501 · WELLS GARDNER 25 K 7501 · WELLS GARDNER 27 K 7501 · WELLS GARDNER 27 K 7501 · WELLS GARDNER K 7500 · WELLS GARDNER MGM 2774 · WELLS GARDNER MONITOR · WELLS GARDNER MONITOR · WELLS GARDNER MONITOR · WELLS GARDNER MONITOR · WELLS GARDNER MONITOR · WELLS GARDNER MONITOR · WELLS GARDNER WGM 2374 · WELLS GARDNER WGM 2574 · WELLS GARDNER WGM 2575 · WELLS GARDNER WGM 2774 · WELLS GARDNER WGM 2774 · WELLS GARDNER WGM 2775 · WELLS GARDNER WGM 2775
